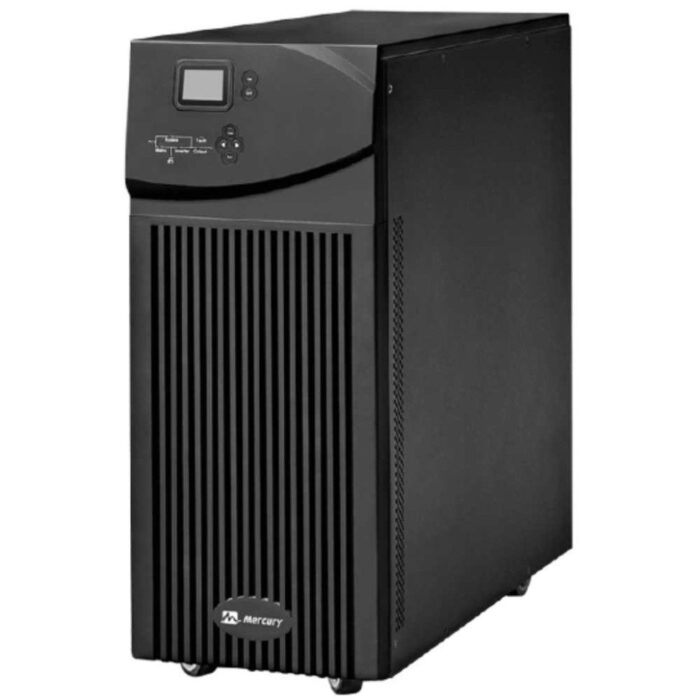

Mercury MP Pro 6kva Online Single Phase UPS

Experience unparalleled power protection with the Mercury 6kva Online UPS Single Phase MP PRO. Engineered with True Online Double Conversion technology, this UPS system guarantees a continuous, clean, and stable power supply, making it the ideal solution for safeguarding critical applications such as industry equipment, IT infrastructure, servers, computer rooms, communication systems, and other sensitive networking and precision equipment.

Key Features

• True Online Double Conversion Technology: Provides uninterrupted power supply with zero transfer time.
• High Efficiency: 92% efficiency at AC input for reduced energy consumption.
• Advanced DSP Control: Ensures precise and reliable performance.
• N+X Parallel Redundancy: Enhances reliability and scalability.
• Flexible Battery Configuration: Supports 16, 18, or 20 VRLA batteries with temperature compensation.
• High Output Power Factor: 0.9PF for optimal performance.
• Generator Compatibility: Supports generator input and cold start functionality.
• Economic (ECO) Operation Mode: Saves energy and reduces operational costs.
• Self-Testing Capability: Automatic self-testing at startup for proactive maintenance.
• Comprehensive Protection: Protects against input low voltage, overcurrent, overload, short circuit, temperature, and battery overcharge.

Mercury MP Pro 6kva Online Single Phase UPS specifications

• Model: Mercury MP Pro 6kVA
• Type: Online Double Conversion UPS
• Topology: True Online Double Conversion
• Form Factor: Tower or Rackmount (depending on model variant)

Capacity:

• Power Capacity: 6000VA / 4800W
• Power Factor: 0.8

Input Specifications:

• Input Voltage Range: 176V – 276V AC (single-phase)
• Input Frequency: 50Hz / 60Hz (Auto Sensing)
• Input Phase: Single-phase with ground
• Input Power Factor: ≥ 0.99 (at full load)

Output Specifications:

• Output Voltage: 220/230/240V AC (Selectable)
• Output Frequency: 50Hz or 60Hz (Auto Sensing)
• Output Waveform: Pure Sine Wave
• Voltage Regulation: ± 1%
• Transfer Time: Zero (Online Double Conversion)
• Crest Factor: 3:1

Battery:

• Battery Type: Sealed Lead-Acid Maintenance-Free
• Battery Voltage: 192V DC (typically 16 x 12V batteries)
• Backup Time: Dependent on external battery bank size and load (e.g., 10-20 minutes at full load)
• Recharge Time: 4-6 hours to 90% capacity
• Battery Management: Intelligent Battery Management (including overcharge, deep discharge, and temperature protection)

Features:

• LCD Display: Yes (displays input/output voltage, frequency, load level, battery level, and other status indicators)
• Audible Alarm: Yes (overload, battery low, fault)
• Automatic Voltage Regulation (AVR): Yes (provides protection against voltage fluctuations)
• Cold Start Function: Yes (can start the UPS without AC power)
• Auto Restart: Yes (automatically restarts the UPS when AC power is restored)
• Communication Ports: USB, RS232, SNMP (optional)
• ECO Mode: Yes (energy-saving mode)
• Outlets: Multiple outlets (typically 6-10 depending on model)

Protection:

• Overload Protection: Yes
• Short Circuit Protection: Yes
• Surge Protection: Yes (built-in surge protection for connected devices)
• Overcharge Protection: Yes
• Deep Discharge Protection: Yes
• Input/Output Isolation: Yes (electrical noise isolation)
