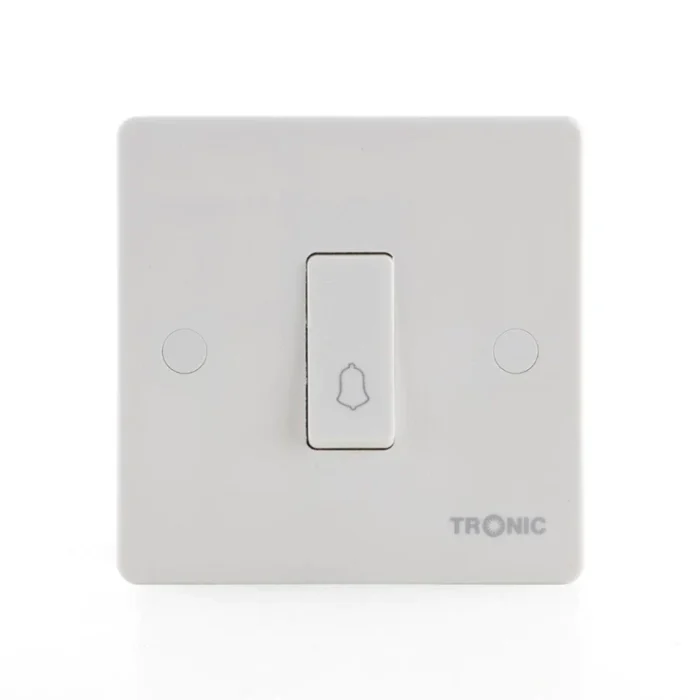

Tronic Doorbell switch, TRK-5180

Tronic TRK-5180 Doorbell switch

Description; This bell switch has rounded edges to complement any contemporary home or workplace decor. Bell push switches can be utilized in other parts of a project in addition to the front entrance, where they are typically used. By activating a doorbell, you complete an electrical circuit that causes current to flow through the device’s internal electromagnet, creating the sound.

• Brand: Tronic
• Model: TRK-5180
• Type: Doorbell Switch
• Material: High-quality, flame-retardant polycarbonate
• Color: White
• Switch Type: Push-button switch
• Operation: Momentary contact (normally open, contact closes only when pressed)
• Gang: 1-Gang
• Current Rating: Typically low-current (designed for low-voltage doorbell systems),
• Voltage: Compatible with standard doorbell transformers (typically 8V-24V AC/DC)
• Frequency: 50/60Hz
• Mounting Type: Surface-mounted or flush-mounted
• Backbox Depth: Standard depth (typically 25mm)
• Wiring Method: Screw terminal connections
• Dimensions: Standard single gang size (typically 86mm x 86mm)
• Standards Compliance: Conforms to BS standards (or equivalent, depending on region)
• Certifications: CE certified (for compliance with European safety standards)
• Application: Suitable for residential and commercial doorbell systems
• IP Rating: Typically IP20 (for indoor use or sheltered outdoor installation)
• Temperature Range: -5°C to 40°C (standard operational range)

Key Features

• Colour: White
• Amps: 10A
• Voltage: AC 220 – 240V
• Dimensions: Height 90mm x Width 90mm
• Material: Bakelite
