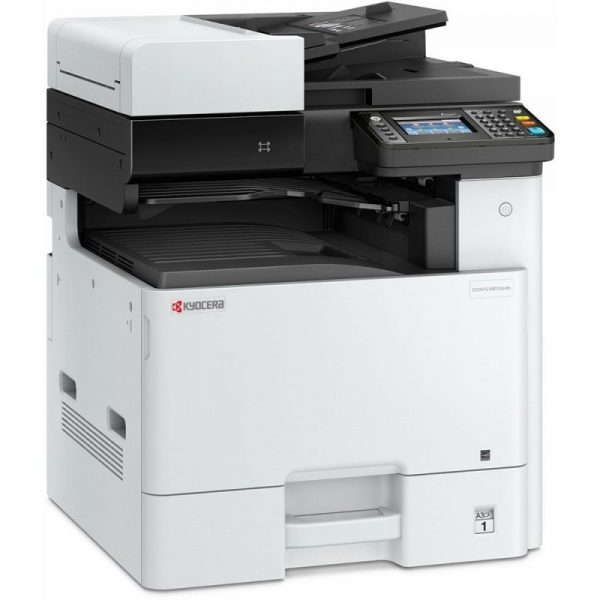

KYOCERA ECOSYS M8124C1DN COPIER COLOR MFP A4 24|24 PPM

General Specifications

• Device Type: Color Multifunction Printer/Copier
• Functions: Print, Copy, Scan, Optional Fax
• Technology: ECOSYS (Kyocera’s proprietary long-life component technology)
• Control Panel: 7-inch color touchscreen display
• Processor: 1.2 GHz quad-core
• Memory: 4 GB RAM standard
• Storage: 32 GB SSD standard, optional 128 GB SSD
• Maximum Monthly Duty Cycle: Up to 100,000 pages
• Recommended Monthly Volume: 1,500 to 8,000 pages

Print Specifications

• Print Speed: 24 pages per minute (A4/Letter) in both color and black & white
• First Print Out Time: 9.5 seconds or less (black), 10.5 seconds or less (color)
• Print Resolution: 1200 x 1200 dpi
• Duplex Printing: Standard automatic double-sided printing
• Paper Size Support: A6 to A4, Letter, Legal, Custom (105 x 148 mm to 216 x 356 mm)
• Paper Input Capacity:
  • Standard: 250-sheet drawer + 100-sheet multipurpose tray
  • Maximum: 1,850 sheets with optional paper feeders
• Paper Output Capacity: 250 sheets face-down
• Media Weight: 60-163 g/m² (main tray), 60-220 g/m² (multipurpose)
• Print Languages: PCL6, PostScript 3 (KPDL3), PDF Direct Print, XPS, TIFF/JPEG Direct Print

Copy Specifications

• Copy Speed: 24 copies per minute (A4/Letter) in both color and black & white
• First Copy Out Time: 10 seconds or less (black), 12 seconds or less (color)
• Copy Resolution: 600 x 600 dpi
• Continuous Copy: 1-999 sheets
• Zoom Range: 25% to 400% in 1% increments
• Preset Reduction/Enlargement Ratios: 5 reduction, 5 enlargement

Scan Specifications

• Scan Type: Color and Black & White
• Scan Resolution: 600 x 600 dpi (optical), up to 1200 dpi (enhanced)
• Scan Speed: Up to 40 images per minute (300 dpi, A4, black & white and color)
• Document Processor: 75-sheet reversing automatic document feeder (RADF)
• File Formats: TIFF, JPEG, PDF, PDF/A, Encrypted PDF, High-compression PDF, XPS
• Scan Destinations: Email, FTP, SMB, USB Host, Network TWAIN, WSD scan
• Original Size: Up to A4/Legal

Connectivity

• Standard Interfaces:
  • USB 2.0 (Hi-Speed)
  • 10/100/1000BaseTX Ethernet
  • USB Host Interface (for USB flash drives)
• Optional Interfaces:
  • Wireless LAN (IEEE 802.11b/g/n)
  • NFC Tag for mobile printing
• Network Protocols: TCP/IP (IPv4, IPv6), NetBEUI
• Mobile Printing Support: Kyocera Mobile Print, AirPrint, Mopria, Google Cloud Print

Environmental Specifications

• Power Consumption:
  • Printing: 450W
  • Copying: 450W
  • Sleep Mode: 0.5W
• Typical Electricity Consumption (TEC): 1.1 kWh/week
• Noise Level: 48.3 dB(A) when printing in color, 47.2 dB(A) when printing in B&W
• Safety Standards: TÜV/GS, CE, Energy Star 3.0
• Environmental Certifications: EPEAT Gold, Blue Angel

Physical Specifications

• Dimensions (W × D × H): 476.1 × 497.8 × 566.5 mm (18.7″ × 19.6″ × 22.3″)
• Weight: Approximately 28.8 kg (63.5 lbs)

Consumables

• Toner Cartridges:
  • Black: Yield up to 7,000 pages (ISO/IEC 19798)
  • Cyan, Magenta, Yellow: Yield up to 5,000 pages each (ISO/IEC 19798)
• Starter Toner:
  • Black: 3,500 pages
  • Cyan, Magenta, Yellow: 2,500 pages each
• Drum Units: Up to 200,000 pages
• Waste Toner Bottle: 30,000 pages

Options and Accessories

• Paper Handling Options:
  • PF-5100: 500-sheet paper feeder (up to 3 can be added)
  • DT-5100: Document tray
  • Inner Finisher: 50-sheet stapling
• Fax System: Fax System 10
• Others: Card Authentication Kit, Data Security Kit, ThinPrint support

Software and Solutions

• Standard Software: KX Print Driver, KYOCERA Net Admin, KYOCERA Net Viewer
• Optional Software: KYOCERA Document Solutions print management and security solutions

Warranty

• Standard Warranty: 1-year or 100,000 pages, whichever comes first
• ECOSYS Long-Life Components: Designed to minimize replacement of parts
