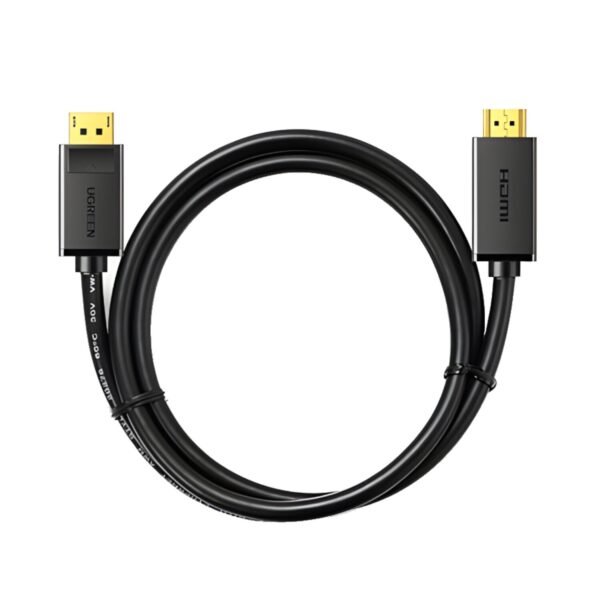

UGREEN 2M DP Male to HDMI Male Cable (Black) – DP101

The UGREEN DP101 connects DisplayPort-equipped computers directly to HDMI monitors, TVs, and projectors with a single cable. This 2-meter cable eliminates the need for separate adapters and connectors by providing native DisplayPort to HDMI conversion in a durable cable format. Students can connect their desktop computers to HDMI monitors without additional hardware, while business professionals gain a reliable solution for connecting workstations to conference room displays.

Key Features & Benefits

• Direct DisplayPort to HDMI Connection: Combines cable and adapter functionality in one unit, reducing connection points that can fail or come loose during presentations and daily use.
• 4K Resolution Support: Transmits video up to 4K@30Hz (3840×2160), delivering sharp images on Ultra HD displays while maintaining backward compatibility with 1080p and 720p monitors.
• 2-Meter Cable Length: Provides 6.6 feet of reach for flexible desk arrangements and equipment placement without cable tension, accommodating typical workspace distances between towers and displays.
• Unidirectional Conversion: Built-in chipset actively converts DisplayPort signals to HDMI format, ensuring reliable compatibility across diverse hardware combinations without manual configuration.
• Triple-Shielded Construction: Aluminum foil and braided shielding protect against electromagnetic interference from nearby cables and electronics, maintaining signal integrity for stable, flicker-free video.

Technical Specifications

Video Performance

• Input: DisplayPort male (DP 1.2 compatible)
• Output: HDMI male (Type A, standard)
• Maximum Resolution: 4K@30Hz (3840×2160)
• Supported Resolutions: 4K@30Hz, 2K@60Hz, 1080p@60Hz, 1080p@120Hz, 1080i, 720p
• Color Depth: 24-bit RGB
• Refresh Rates: Up to 60Hz at 1080p, 30Hz at 4K

Audio Support

• Multi-channel Audio: Up to 7.1 channel surround sound
• Audio Formats: LPCM, Dolby Digital, DTS
• Note: Audio transmitted through HDMI connection to compatible displays

Cable Specifications

• Length: 2 meters (6.6 feet)
• Cable Type: DisplayPort to HDMI (unidirectional)
• Direction: DisplayPort source → HDMI display only
• Wire Gauge: 28AWG
• Conductor: Oxygen-free copper (OFC)

Physical Design

• Cable Diameter: 6mm
• Connector Housing: Gold-plated contacts with PVC molded strain relief
• Shielding: Triple-layer (aluminum foil + braided + aluminum mylar)
• Jacket Material: PVC outer sheath
• Weight: 95g (3.4 oz)
• Color: Black

Compatibility

• Source Devices (DisplayPort):
  • Desktop computers with DisplayPort output
  • Laptops with DisplayPort or Mini DisplayPort (requires separate adapter)
  • Workstations and graphics cards
  • Docking stations with DisplayPort
• Display Devices (HDMI):
  • HDTVs, monitors, projectors with HDMI input
  • Computer displays, gaming monitors
  • Conference room displays
• Operating Systems: Windows 7/8/10/11, macOS, Linux (plug-and-play)

Standards Compliance

• DisplayPort: Version 1.2
• HDMI: Version 1.4 equivalent output
• HDCP: HDCP 1.4 support for protected content

Use Cases & Applications

For Students

Connect desktop computers to modern HDMI monitors in dorm rooms or home study spaces. Many budget-friendly gaming PCs and pre-built systems include DisplayPort outputs on graphics cards—this cable lets you use the popular HDMI monitors without buying separate adapters that clutter your desk.

Set up dual-monitor configurations for productivity during research and writing. Run one monitor through your graphics card’s HDMI port and a second through DisplayPort, expanding your workspace for comparing sources, writing papers, and managing multiple applications simultaneously.

Present projects in classrooms using your laptop and the room’s HDMI projector. If your laptop has Mini DisplayPort (common on older MacBooks and business laptops), combine this cable with a DisplayPort to Mini DisplayPort adapter for reliable classroom presentations.

For Business Professionals

Connect workstations to conference room displays during meetings and presentations. Desktop computers at offices typically feature DisplayPort connections while conference rooms standardize on HDMI—the DP101 ensures seamless connectivity without hunting for adapters.

Create permanent desk setups where your tower sits under your desk while monitors sit on top. The 2-meter length accommodates typical under-desk to desktop distances, keeping cables organized and workspaces tidy without stretching or stress on connections.

Hot-desk in different office areas using HDMI-equipped monitors. Carry this cable with your laptop docking station to connect at any workstation with HDMI displays, maintaining productivity regardless of which desk you occupy.

For Desktop Gaming Setups

Connect gaming PCs with DisplayPort graphics cards to HDMI gaming monitors or TVs. Modern graphics cards prioritize DisplayPort for monitor connections, but many affordable gaming displays and all TVs use HDMI—this cable bridges that gap without performance loss.

Extend your gaming setup to living room TVs for big-screen gaming sessions. The cable handles 1080p@60Hz perfectly for smooth gameplay on larger displays, making it ideal for racing games, fighting games, and multiplayer titles where screen size enhances immersion.

For Multi-Monitor Workstations

Build cost-effective multi-display configurations using your graphics card’s available ports. Most modern GPUs include multiple DisplayPort outputs and one or two HDMI ports—the DP101 lets you connect HDMI-only monitors to DisplayPort outputs, maximizing display connectivity without expensive adapters.

Create asymmetric monitor setups where different displays connect through various ports. Use DisplayPort-native connections for your primary high-refresh monitor and this cable for secondary HDMI displays handling email, chat, or reference materials.

For Creative Professionals

Connect workstations to color-accurate HDMI monitors for photo and video editing. While DisplayPort offers advantages for certain professional displays, many excellent HDMI monitors suit creative work—this cable provides that connectivity without compromising color accuracy or resolution.

Set up client preview monitors in studios and editing suites. Let clients view work on separate HDMI displays while you work on your primary DisplayPort monitor, improving collaboration without sharing your working screen.

For Home Office Environments

Repurpose existing HDMI monitors with new DisplayPort-equipped computers. Rather than replacing functional monitors when upgrading PCs, this cable maintains compatibility, extending the useful life of your display investments.

Connect desktop computers to TVs for occasional large-screen work or presentations. The 2-meter length works well for typical desk-to-wall-mounted-TV distances in home offices, enabling flexible workspace configurations.

Technical Considerations

This cable converts signals in one direction only—DisplayPort source to HDMI display. It cannot work reversed (HDMI source to DisplayPort display). The direction is clearly marked on the packaging and cable itself. Attempting reverse connection won’t damage equipment but simply won’t produce an image.

The maximum 4K@30Hz specification reflects both DisplayPort 1.2 and HDMI 1.4 bandwidth limitations. For 4K@60Hz, you would need DisplayPort 1.4 to HDMI 2.0 cables, which cost more and require both source and display to support those newer standards. For most productivity work, 4K@30Hz provides adequate performance.

Active conversion chips inside the cable require power drawn from the DisplayPort connection. Some older or low-power DisplayPort sources may not provide sufficient power, resulting in no image. If this occurs, try powered DisplayPort to HDMI adapters instead, though this is rare with modern equipment.

DisplayPort supports higher bandwidth than HDMI 1.4, so this cable down-converts signals to HDMI-compatible formats. You won’t access DisplayPort-specific features like daisy-chaining multiple monitors or using refresh rates above 60Hz at 1080p when outputting to HDMI displays.

Audio transmission works automatically through the HDMI connection to displays with built-in speakers or audio output. Your computer should detect HDMI audio output and make it available in sound settings. Some systems require manually selecting HDMI as the audio output device.

Cable Length Considerations: The 2-meter length represents a good balance for desktop use. DisplayPort signals can travel longer distances than HDMI, but the HDMI output side limits practical length. For runs longer than 3 meters, consider active DisplayPort to HDMI adapters with separate HDMI cables, which maintain signal strength over greater distances.

Graphics Card Compatibility: Modern NVIDIA and AMD graphics cards from the past decade support DisplayPort 1.2 or higher, ensuring full compatibility. Very old graphics cards with DisplayPort 1.0 or 1.1 may limit resolution options. Check your GPU specifications if you experience resolution or refresh rate issues.

Refresh Rate Expectations: While the cable supports 1080p@120Hz theoretically, actual performance depends on your source and display capabilities. Gaming monitors advertising 144Hz typically require native DisplayPort or HDMI 2.0 connections. This cable works best for 60Hz displays, which covers most TVs and standard monitors.

Important Notes: Gold-plated connectors resist corrosion and maintain signal quality, but avoid excessive plugging and unplugging, which wears any connector over time. The PVC strain relief boots protect the cable at connector points—avoid sharp bends within 2 inches of connectors to prevent wire breakage. Some laptops include Mini DisplayPort instead of full-size DisplayPort—this cable requires full-size DisplayPort, so you’ll need a Mini DP to DP adapter (not included) for those devices. The cable doesn’t require drivers or software installation—if your display doesn’t show an image, verify both devices are powered on, try different input selections on your display, and confirm your graphics card recognizes the connected display in system settings. For best results with 4K displays, ensure your graphics card drivers are current—outdated drivers sometimes limit resolution options even when hardware supports higher resolutions.
