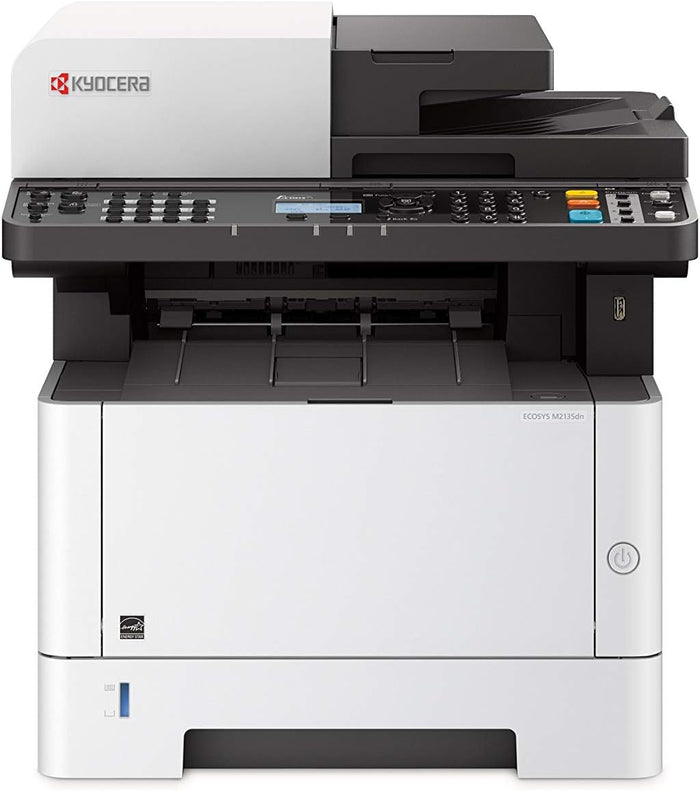

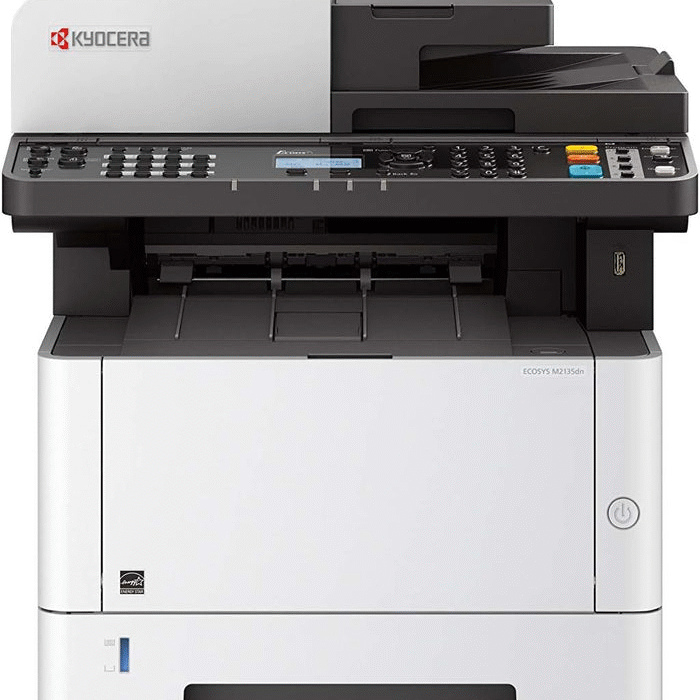

KYOCERA ECOSYS M2135DN PRINTER

Performance Specifications

• Print Technology: Laser, monochrome
• Print Speed: Up to 35 pages per minute (A4)
• Time to First Print: Approximately 6.8 seconds
• Warm-up Time: Approximately 17 seconds from power on
• Print Resolution: Up to 1200 × 1200 dpi
• Recommended Monthly Print Volume: Up to 10,000 pages
• Maximum Duty Cycle: Up to 50,000 pages per month

Multifunction Capabilities

• Print: Fast, high-quality monochrome printing
• Copy: Quick digital copying with customizable settings
• Scan: Color scanning to multiple destinations
• Scan Speed: Up to 40 images per minute
• Scan Resolution: Up to 600 × 600 dpi (optical)
• Scan Destinations: Email, FTP, SMB, USB Host, TWAIN/WIA

Paper Handling

• Standard Paper Capacity: 350 sheets total
  • 250-sheet universal paper cassette (A6-A4, 60-163 g/m²)
  • 100-sheet multi-purpose tray (A6-A4, 60-220 g/m²)
• Maximum Paper Capacity: 850 sheets with optional paper feeders
• Automatic Document Feeder: 50 sheets
• Duplex Unit: Standard automatic double-sided printing
• Output Capacity: 150 sheets face-down

Connectivity & Compatibility

• Standard Interfaces:
  • USB 2.0 (Hi-Speed)
  • 10/100/1000BaseTX Ethernet
  • USB Host Interface
• Network Printing Protocols: TCP/IP, NetBEUI
• Operating System Compatibility: Windows, Mac OS, Linux, UNIX
• Print Languages: PCL6 (PCL5e/PCL-XL), PostScript 3 (KPDL3), PDF Direct Print, XPS Direct Print

System & Processing

• CPU: 800 MHz
• Memory: 512 MB RAM standard (expandable to 1,536 MB)

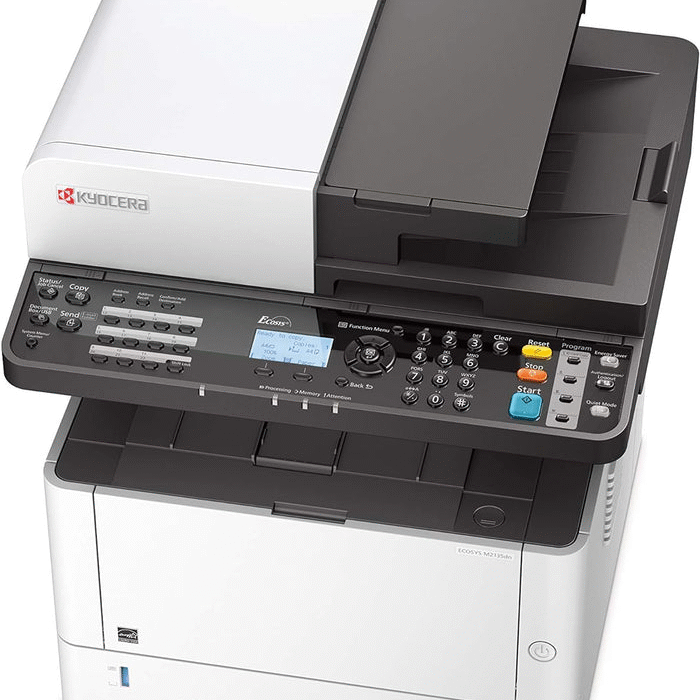

• Control Panel: 5-line LCD display with keypad
• Document Processor: Standard reverse automatic document processor

Physical Specifications

• Dimensions (W × D × H): 417 × 412 × 437 mm (16.4″ × 16.2″ × 17.2″)
• Weight: Approximately 19 kg (41.9 lbs)
• Power Requirements: AC 220 ~ 240 V, 50/60 Hz
• Power Consumption:
  • Printing: 661 W
  • Ready mode: 21 W
  • Sleep mode: 1 W

ECOSYS Technology Benefits

• Long-Life Components: Drum and developer good for up to 300,000 pages
• Low Consumable Costs: Only toner needs regular replacement
• Low Environmental Impact: Reduced waste and energy consumption
• Low Total Cost of Ownership: Minimal maintenance and consumable expenses

Consumables

• Toner: TK-1150 (yields approximately 3,000 pages at 5% coverage)
• Initial Toner: Approximately 1,000 pages
• Maintenance Kit: MK-1150 (recommended every 100,000 pages)

Environmental Certifications

• ENERGY STAR® qualified
• Blue Angel certification
• RoHS compliant
• WEEE compliant

Security Features

• Authentication: Local and network authentication
• Data Security: Data encryption, secure print
• Access Control: Password-protected administration
